Model Number : YP352833
Place of Origin : Jiangsu, China
Brand Name : RFint
Packaging Details : Carton
Price : Prices are negotiable
Delivery Time : 2-10days
Type : power amplifier
Network : Wireless Lan, 4g
Parameter : Rating

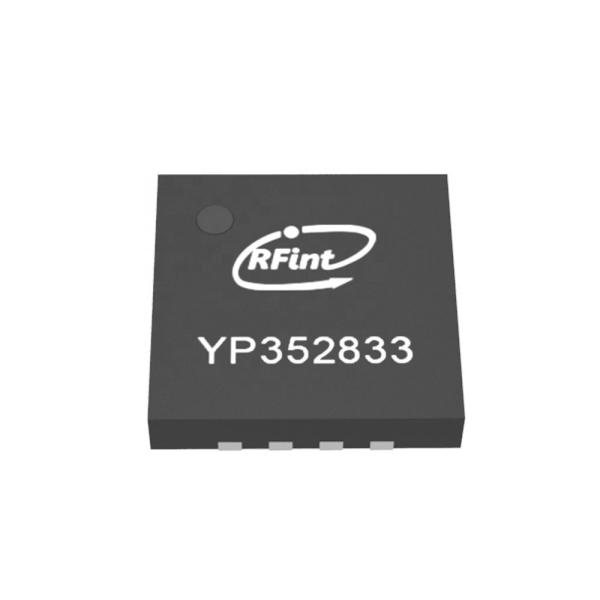

RFint YP352833 High Integrated Power Amplifier MMIC Intend Portable Signal Power Amplifier for 5G Wireless 3200-3800MHz
The YP352833 is a high-integrated power amplifier MMIC intend for 5G wireless communication application. This power amplifier provides a typical gain of 28 dB and P1dB of 33dBm at 3.5GHz, amplifier provides a typical gain of 28 dB and P1dB of 33dbm at 3.5 GHZ, it's typical quiescent bias condition is 5.0V at 400mA. The device is manufactured on an advanced InGaP/GaAs Heterojunction Bipolar Transistor (HBT) process. The YP352833 is assembled in a 16-pin,4mm×4mm, QFN package, it is internally integrated with ESD protection unit.
Features
Frequency Range | 3.2-3.8GHz |
Gain (Typ) | 28dB |
P1dB (Typ) | 33dB |
Input Return Loss | ≥10dB |
Always final Inspection before shipment;
1 year warranty for our products.
![]() |
MMIC Intend Portable Signal Power Amplifier For 5G Wireless 3200-3800MHz Images |
